Fusion Splicer Sumitomo Type-82C+ splicing machine

Regular price
$5,089.00
Sale price
$5,089.00
Regular price
$6,900.00
Sold out
Unit price
per
Shipping calculated at checkout.

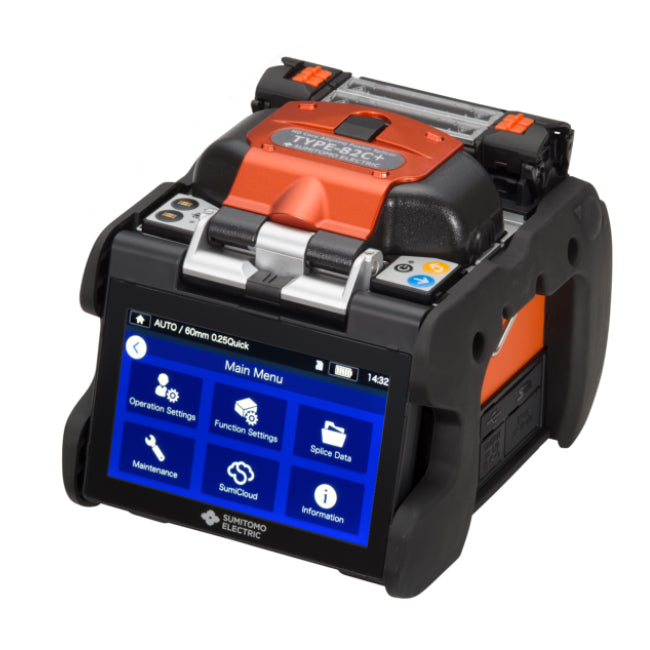

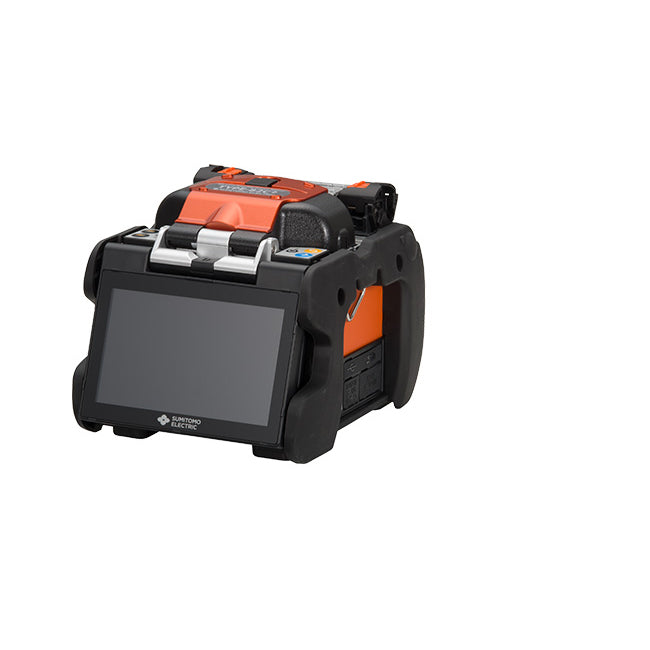

Sumitomo type-82c+ fusion splicer

Sumitomo Type-82C+ is a direct core monitoring fusion splicer for ultra fast splicing in every environment.

FEATURES

  • Ultra fast splicing: 5 sec.
  • Ultra fast heating: 9 sec.
  • Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
  • Automatic arc calibration.
  • G.657 fiber auto-splice function.
  • Supports bi-directional splicing operation.
  • Dust-resistant, water-resistant and shock-proof.
  • Compact & lightweight (only 1.9 kg).
  • Touch-screen operation.
  • Upgrades software via internet.
  • Remote interactive maintenance via internet.
  • Equipped with onboard user training video.



Compact, Lightweight & Faster

  • 2.2kg with battery for 300 splice & heat cycles
  • Faster 5s splice in SM Quick Mode
  • Reduced 9s heat shrink time

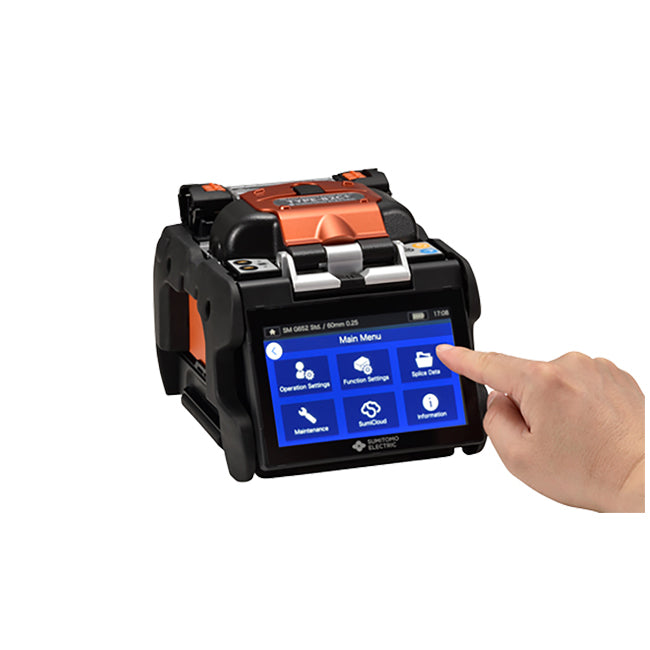

Brand-new touch panel and UI

  • Wide and high resolution touch panel -5" touch screen color LCD display
  • Smartphone-like easy operation




Video Tutorial

  • Video tutorial to help splicing job
  • SumiCloud™ App. to watch tutorial video on smartphone





High Environmental Durability

  • IPx2 water resistance
  • IP5x dust resistance
  • Splice at 50°C
  • Work at 6000m
  • 76cm drop on 5 faces



Dual ovens with flexible clamps

  • Independent
  • Fast-heating 9s
  • Productive
  • Programmable
  • User selectable clamp operation


Wireless LAN
connectivity to
SumiCloud™

  • The world-first fusion splicer with Wireless LAN Connectivity
  • SumiCloud™ smartphone App. to support splicing job
  • WLSD card brings SumiCloud™ services to your splicer via our smartphone App.



TECHNICAL SPECIFICATIONS

Optical fiber requirements
Material
Silica glass
Profile types SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF
Fiber diameter Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm
Applicable fiber or cable size up to φ1,000 µm Drop cable (2.0x3.1 mm), Indoor cable (2.0x2.0 mm)
Cleave length 5~16 mm 10 mm
Standard performance
Splice loss (typical) SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB
Splicing cycle time (typical) 5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode)
Heating cycle time (typical) 9 sec.
Splice & Heat cycles Approx. 300
Fiber view & magnification Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view
Splicing programs Max. 300
Heating programs Max. 100
Functions
Loss estimation Provided
Splice image capture / Splice data storage 200 images / 10,000 splice data
Proof test 1.96N (200 gf)
Universal clamps for 250µm, 900µm tight & loose buffer fiber Provided
Reversible coating clamps Provided
Dual automatic independent heaters Provided (US patent 7,412,146)
User-selectable heater clamp operation Provided
Onboard user training video Provided
Automatic arc calibration Automatically compensates for environmental condition changes
Arc test Provided
Display of remaining Splice & Heat cycles Provided (Battery mode)
Remote interactive maintenance Provided
Terminals
DC output DC12 V (for JR-6)
USB port USB 2.0 (mini-B type)
Storage media SD / SDHC memory card
Power supply
AC input 100 ~ 240V, 50 / 60 Hz (ADC-1430)
DC input 10 ~15 V
Battery module Li-ion 10.8 V, 6,400 mAh (BU-16)
Mechanical Parameters
Monitor
5.0" touch screen color LCD display
Size
128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
Weight
1.9 kg (without battery), 2.2 kg (with battery)
Electrode life 3,000 arc discharges
Environment
Operating conditions Altitude 0~6,000 m, Temperature -10~+50°C, Humidity 0~95% (non-condensing), Wind velocity up to 15 m/s
Storage conditions Temperature -40~+80°C, Humidity 0~95% (non-condensing), Battery -20~+30°C (long term)
Dust resistance Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 µm or below
Water resistance Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°)
Shock resistance Drop from 76cm on 5 faces (excluding top face)
